Product Info

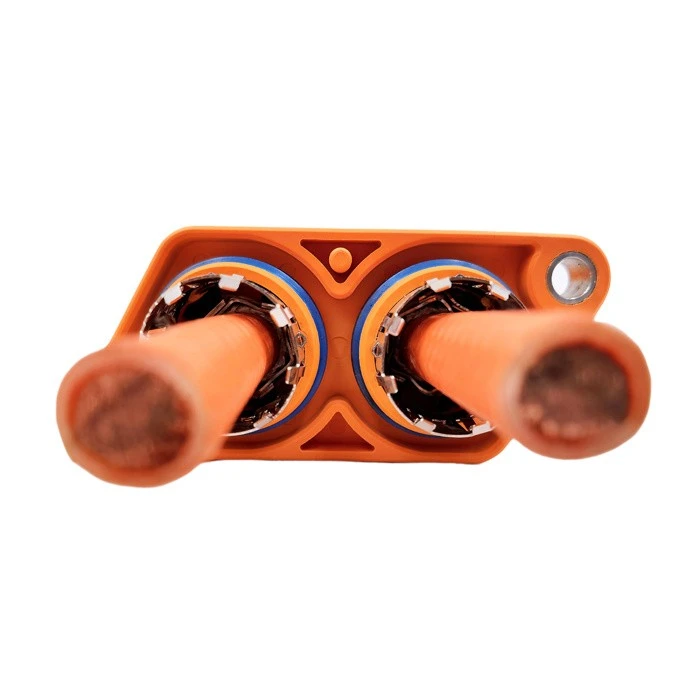

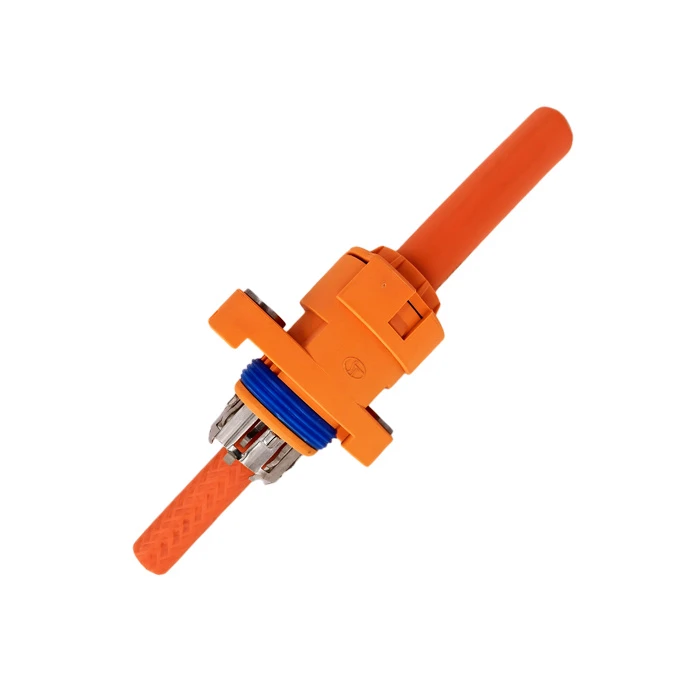

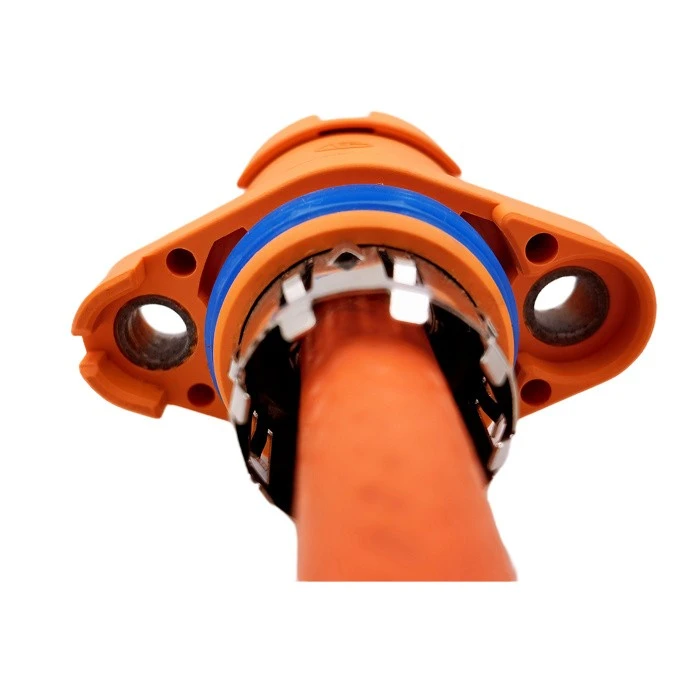

The HV IPT (Insulated Pass-through) connector is a structural high-voltage interface designed to route high-current conductors through bulkheads or sealed enclosures, combining electrical feedthrough, mechanical fixation, and sealing within a single integrated solution.
Unlike plug-and-socket high-voltage connectors, IPT connectors function as permanent or semi-permanent power feedthroughs, optimized for panel mounting and bolted terminations in EV power systems.

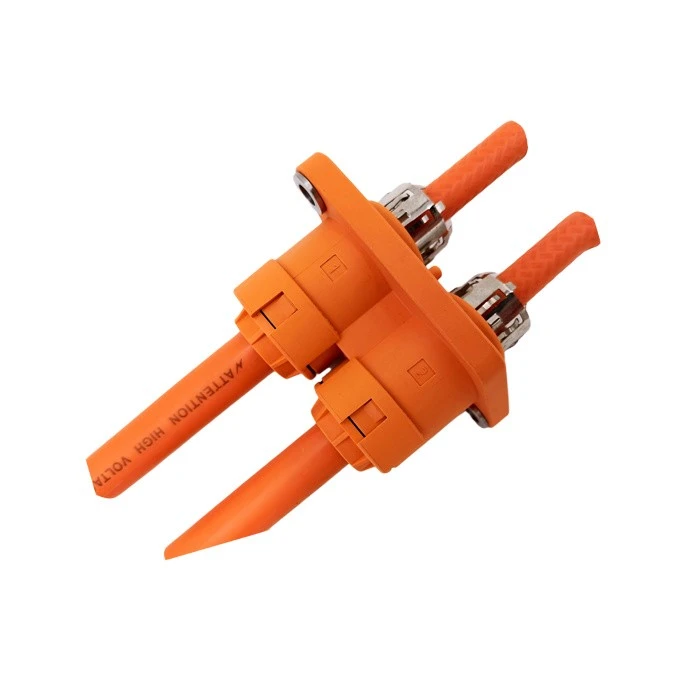

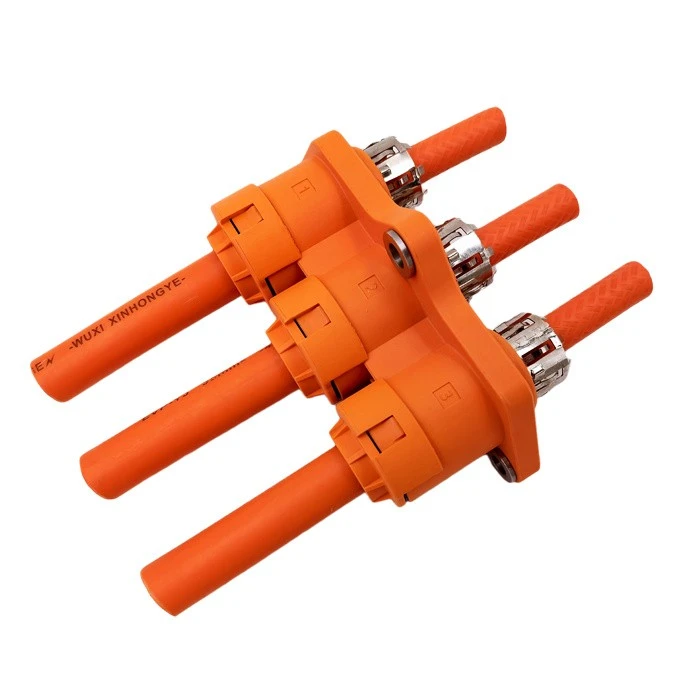

It supports 1-, 2-, and 3-position configurations, with a rated voltage up to 1500 V DC and a rated current up to 250 A DC. Multiple wire size options are available, including 25 mm², 35 mm², 50 mm², and 70 mm², enabling flexible adaptation to different high-power requirements.
Features
- Insulated pass-through (IPT) power-bolt design
- Panel-mount bulkhead structure with integrated sealing
- Power-bolt termination with ring terminals
- Supports currents up to 250 A DC, with multiple cable size options from 25 mm² to 70 mm²
- Designed for high-vibration environments
- Available in multiple conductor configurations
Technical Data
|
Number of Positions: |
1/2/3 |
Rated Voltage: |
1500V DC |
||
|
Contact Material: |
Rated Current: |
≤250A DC |
|||
|
Housing Material: |
PA66-GF30 |
Operating Temperature: |
−40°C to +125°C |
||
|
Color: |
Orange |
Protection Degree: |
IP67 |
||
|
Reference Standards: |
GB/T 20234.2-2015 |
||||
