Product Info

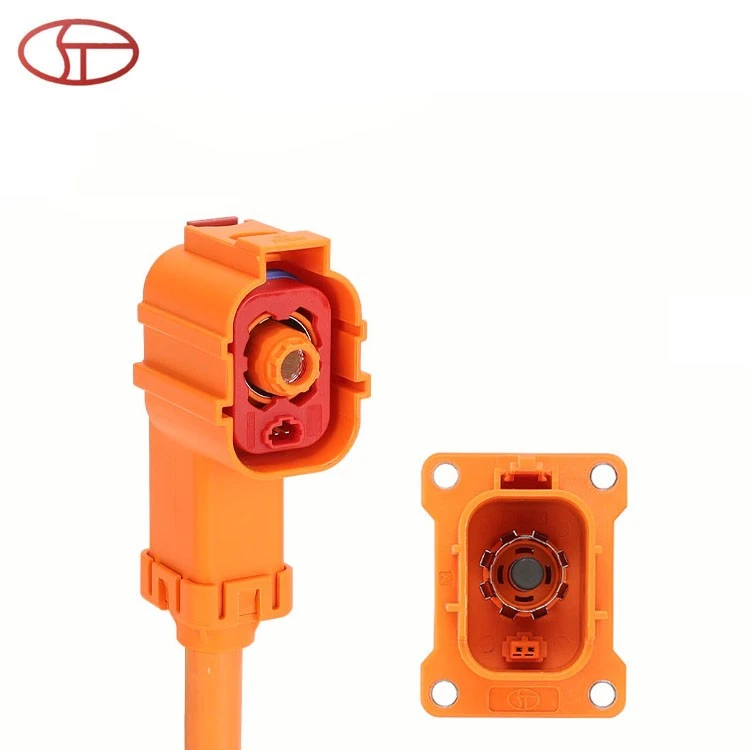

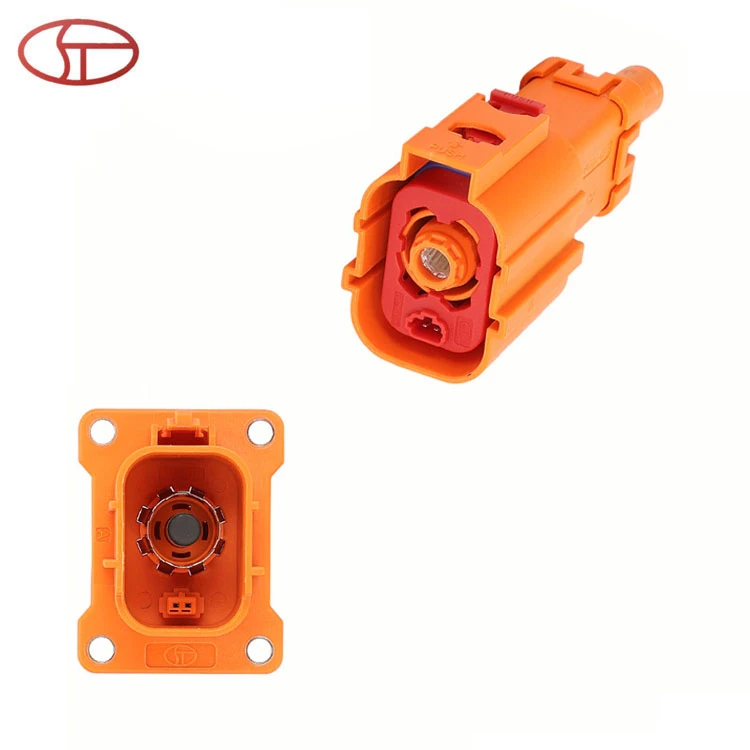

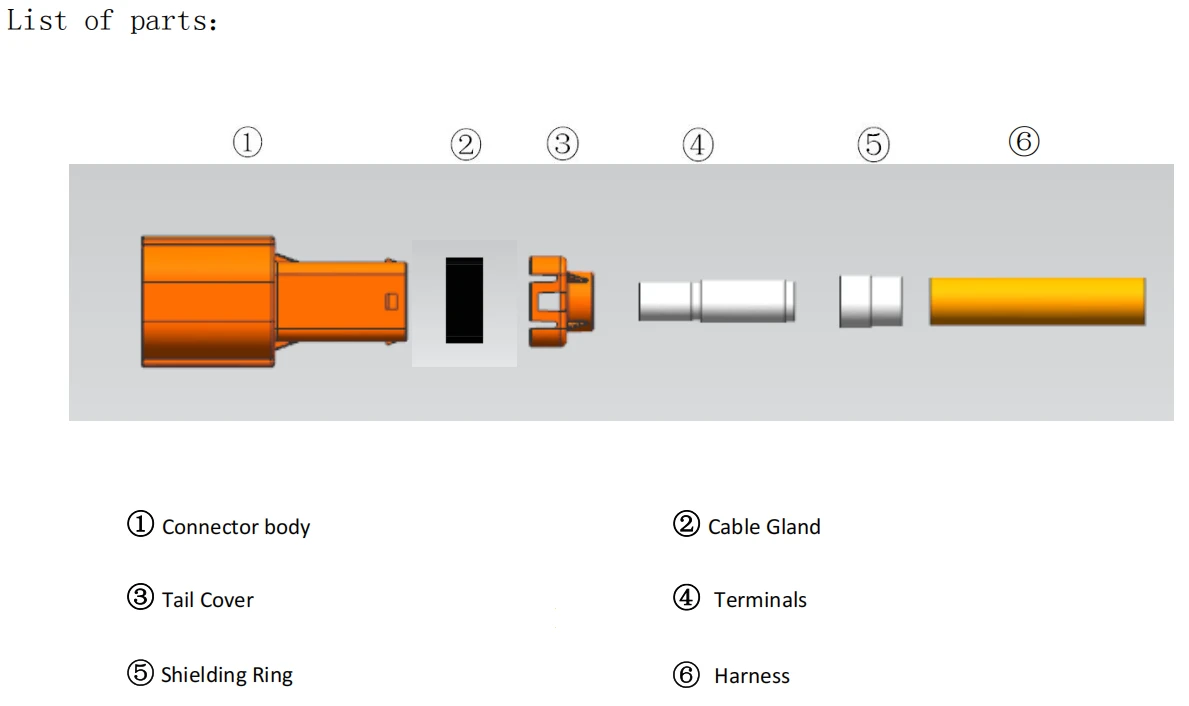

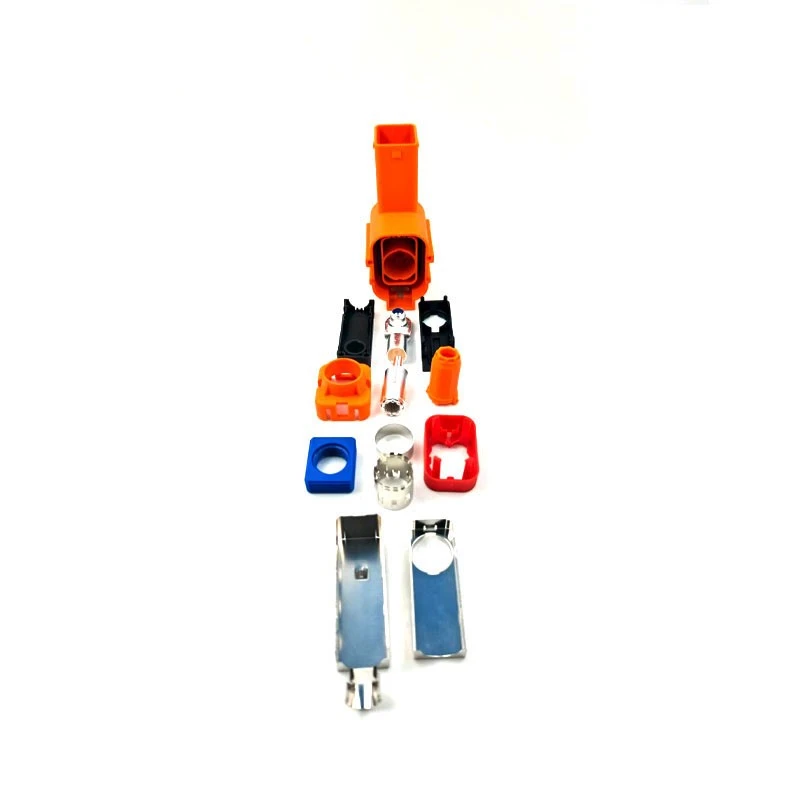

The HV 800 Series 1-pin Connector is designed as a single high-current power-path interface for high-voltage automotive applications. Each connector serves a single power conductor, while complete DC or multi-phase circuits are achieved by using multiple connectors in parallel instead of integrating multiple conductors into one housing.
Based on 8 mm contact technology, the connector supports rated voltages up to 1500 V DC and continuous current levels up to 250 A DC. It is available with both 90° and 180° plug orientations and accommodates large cross-section shielded cables from 25 to 50 mm². Optimized for point-to-point and power-to-power connections between battery packs, power distribution units, inverters, and electric motors, the single-pin architecture enables independent routing, improved thermal performance, and scalable system design.
Features
- Single-pin High-voltage Connector Designed for Main High-current Power Transmission
- 8 mm Contact System Supporting Continuous High Current Levels up to the 200 A Class
- Compatible with Large Cross-section Shielded Cables (25–50 mm²)
- Tool-free Mating and Unmating with Lever-assisted Locking

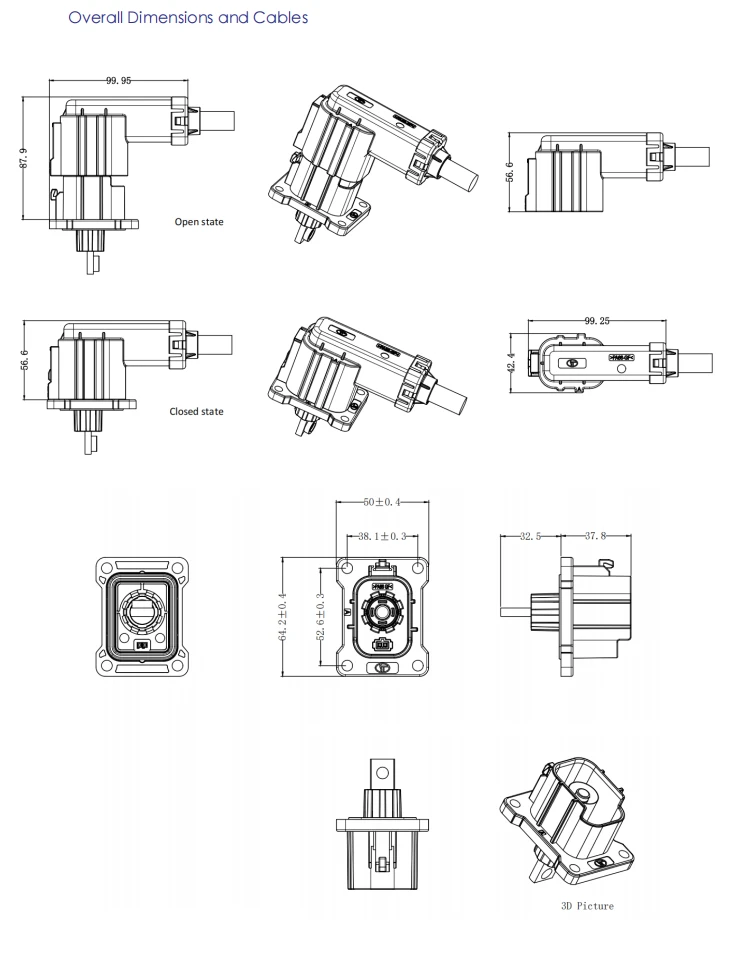

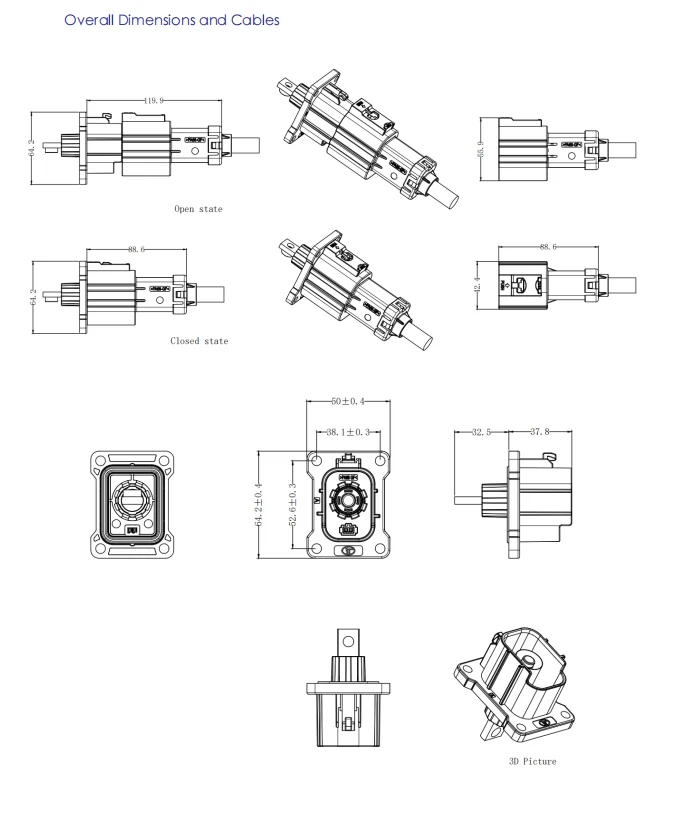

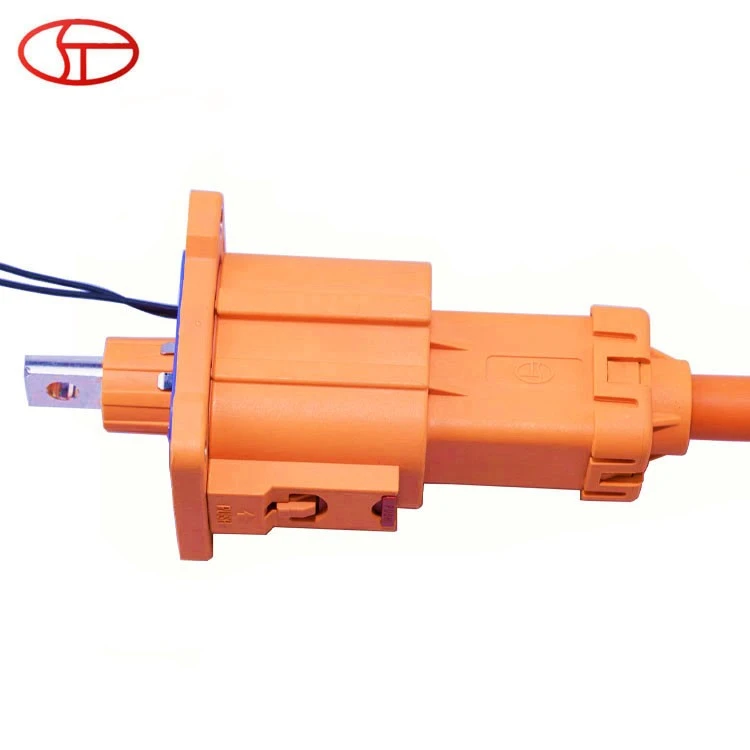

- 90°/180° Plugs Available for Flexible Designs
Technical Data
|
Number of Positions: |
1 |
Rated Voltage: |
1500V DC |
Mating Cycles: |
≥ 500 |
|
Contact Material: |
Copper Alloy (Female) &T2 Copper (Male) |
Rated Current: |
≤250A DC |
Insertion/Withdrawal Force: |
<75N |
|
Housing Material: |
PA66-GF30 |
Operating Temperature: |
−40°C to +125°C |
||
|
Color: |
Orange |
Protection Degree: |
IP67 |
||
|
Reference Standards: |
GB/T 20234.2-2015; GB/T 20234.3-2015 |
||||
